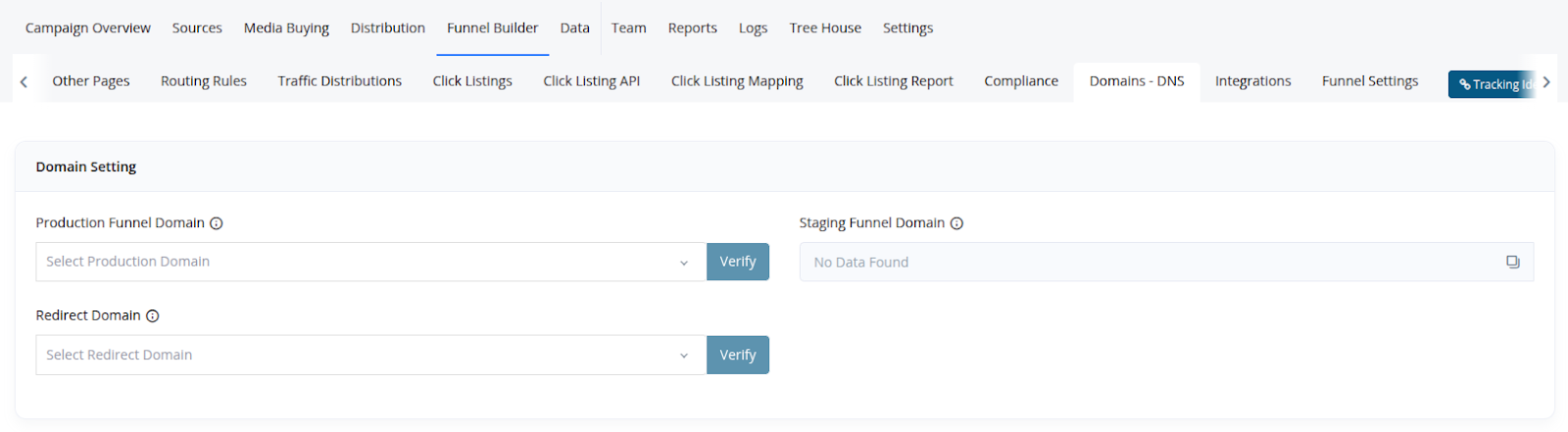

Funnel Domain Settings let you manage and verify domains used across your landing pages and redirects. This ensures your traffic flows securely and efficiently, whether in production or testing.

​
1. Production Funnel Domain

Purpose:
This domain serves all your live landing pages and forms. It acts as the front-facing domain where users enter your funnel.

Setup Steps:

  • Choose your production domain from the dropdown.
  • Point the domain to IP address: 54.241.58.112
  • If you’re using a root domain (like yourdomain.com), also point the www subdomain to the same IP.
  • Click Verify to confirm setup.

Behavior:
All production traffic flows through this domain. Based on routing rules, Pingtree will determine which landing or form page is shown to each user.

Example:
A visitor might go from www.yourdomain.com → Landing Page → Form Page — all served via this domain.

​
2. Staging Funnel Domain

Purpose:
Used for QA and testing purposes. The staging domain replicates production behavior without affecting live traffic.

How It Works:

  • No setup required on your end. A staging domain like formrouting-xxxxxx.pngtrk.studio is automatically provided and verified.
  • This domain follows the same routing and form logic as production.

Use it to test page designs, routing logic, and integrations before pushing changes live.

​
3. Redirect Domain

Purpose:
Handles only redirect traffic. It’s used with Tracking Links to send users to:

  • Funnel landing pages
  • Advertiser click URLs
  • External domains

Setup Steps:

  • Choose your redirect domain from the dropdown.
  • Point it to IP address: 54.219.75.168
  • Click Verify to confirm.

Routing Behavior:

Controlled by your Link Route setting:

  • Funnel: Redirects to your funnel landing page.
  • Direct Sell: Redirects to an advertiser’s click URL.
  • External Domain: Redirects to a third-party website.

Example:
In your form page, the submit link may look like:

<a href="{{pt-webflow-url}}">Submit</a>

Pingtree automatically replaces the placeholder with the correct redirect URL based on your routing logic.

​
Key Notes

  • Always verify DNS propagation for your domains.
  • For root domains, include both @ and www A-records to ensure full coverage.
  • Use the staging domain for safe testing and QA before publishing updates.
